12mm | 28W/m 4000ºK | IP20 | COB Flexible LED Strip Light

12mm | 28W/m 4000ºK | IP20 | COB Flexible LED Strip Light


Lighting Creations

In stock

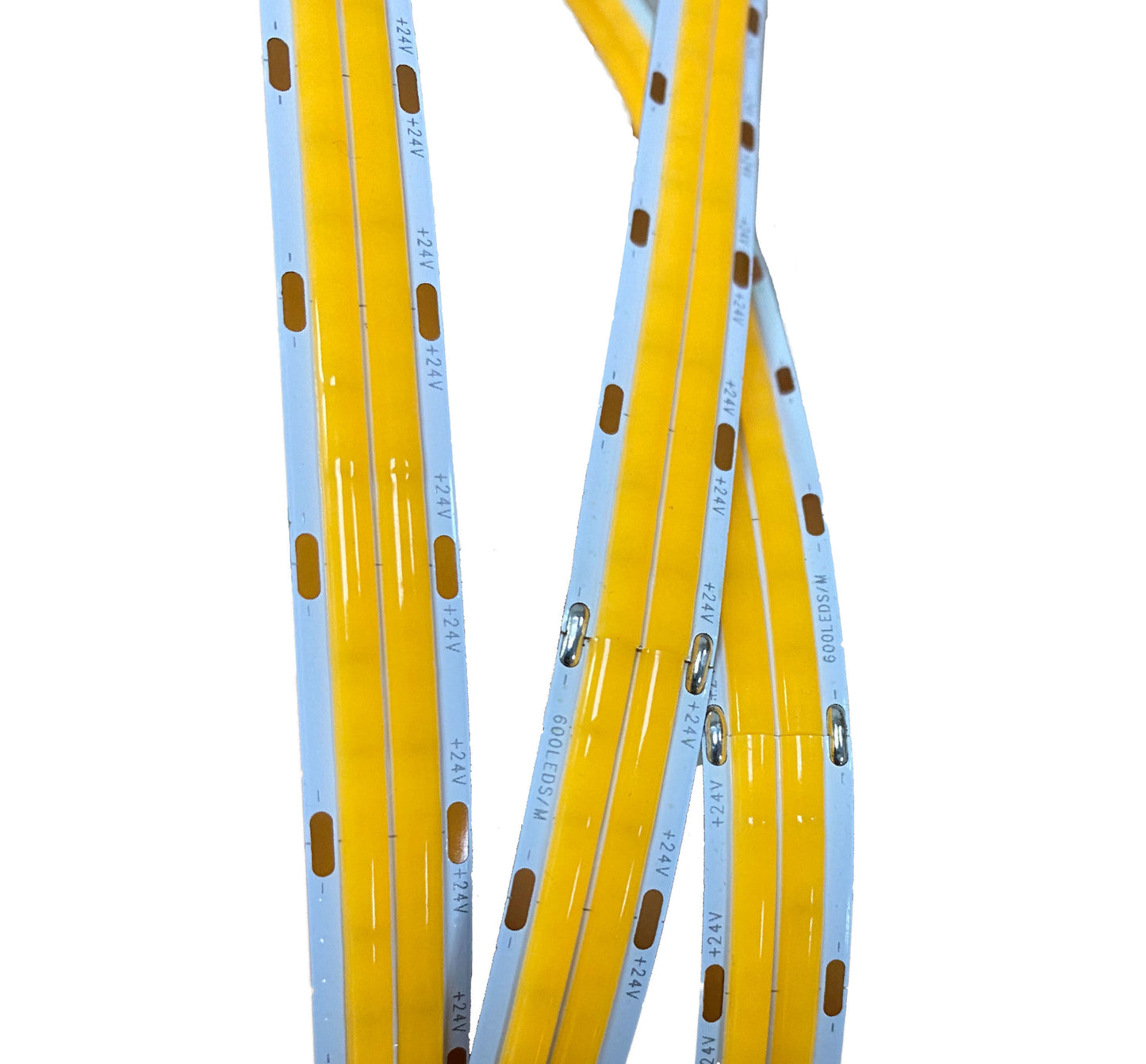

COB flexible strip light offers a seamless visual linear light, eliminating any visual dots often found with traditional strip light.  Ideal for installations where the LED strip will not be mounted within profile but seen.

This LED strip light is rated at 14.4W/m, producing high levels of light.

CRI is >90, which provides very high true colour representation.

COB is an acronym for: Chip on Board

The PCB is made using 3oz copper, this reduces voltage drop, so allows for a continuous 10m length without visible loss of brightness.

The thermal efficiency of this LED strip means it does not require a heatsink allowing it to be mounted to almost any smooth hard surface.

This LED strip carries an IP rating of 20, this is an indoor / dry environment LED strip only.

Electrical Data
Voltage 24 VDC
Wattage 1m 28 W
Current 1m 1.2 A
LED Data
Package Type COB (Chip on Board)
Chips LED 1
LEDs 1m 528
Photometric Data
Colour Temperature 4000K
Colour Rendering Index Ra >90
Luminous Flux 1m 1584
Luminous Efficacey 110
Beam Angle 120°
Dimmable 1 ∼ 100% (refer data sheet)
Construction / Protection Data
Substrate Double layer FPCB
Mounting Double sided tape 3M 9080
IP Rating IP20
Operating Temperature -20 ∼ +70 C°
Storage Temperature -20 ∼ +50 C°
Cutting increments 45.45mm
Length 5m
Width 12.0mm
Height 1.2mm
Working Life 70,0000 hrs
