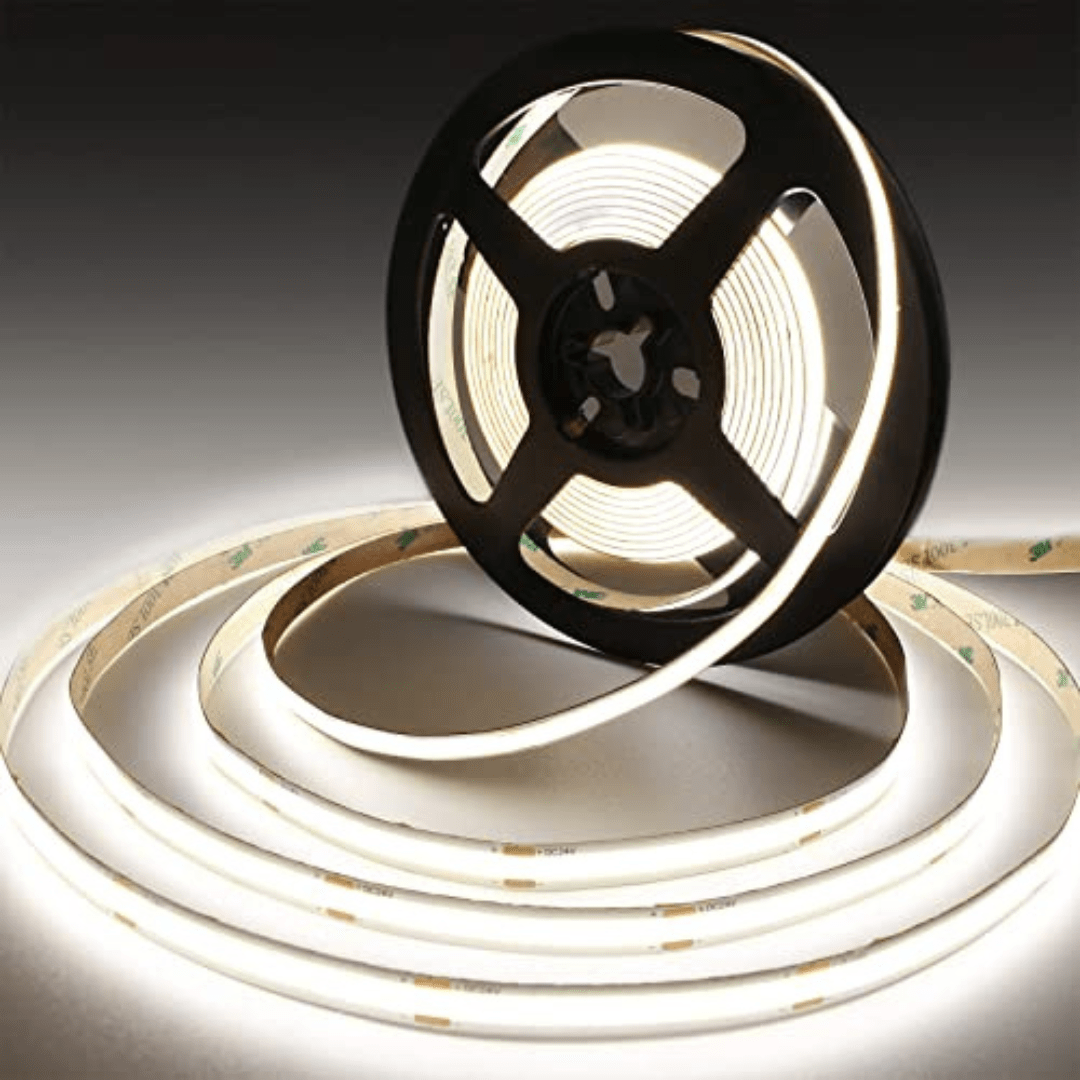

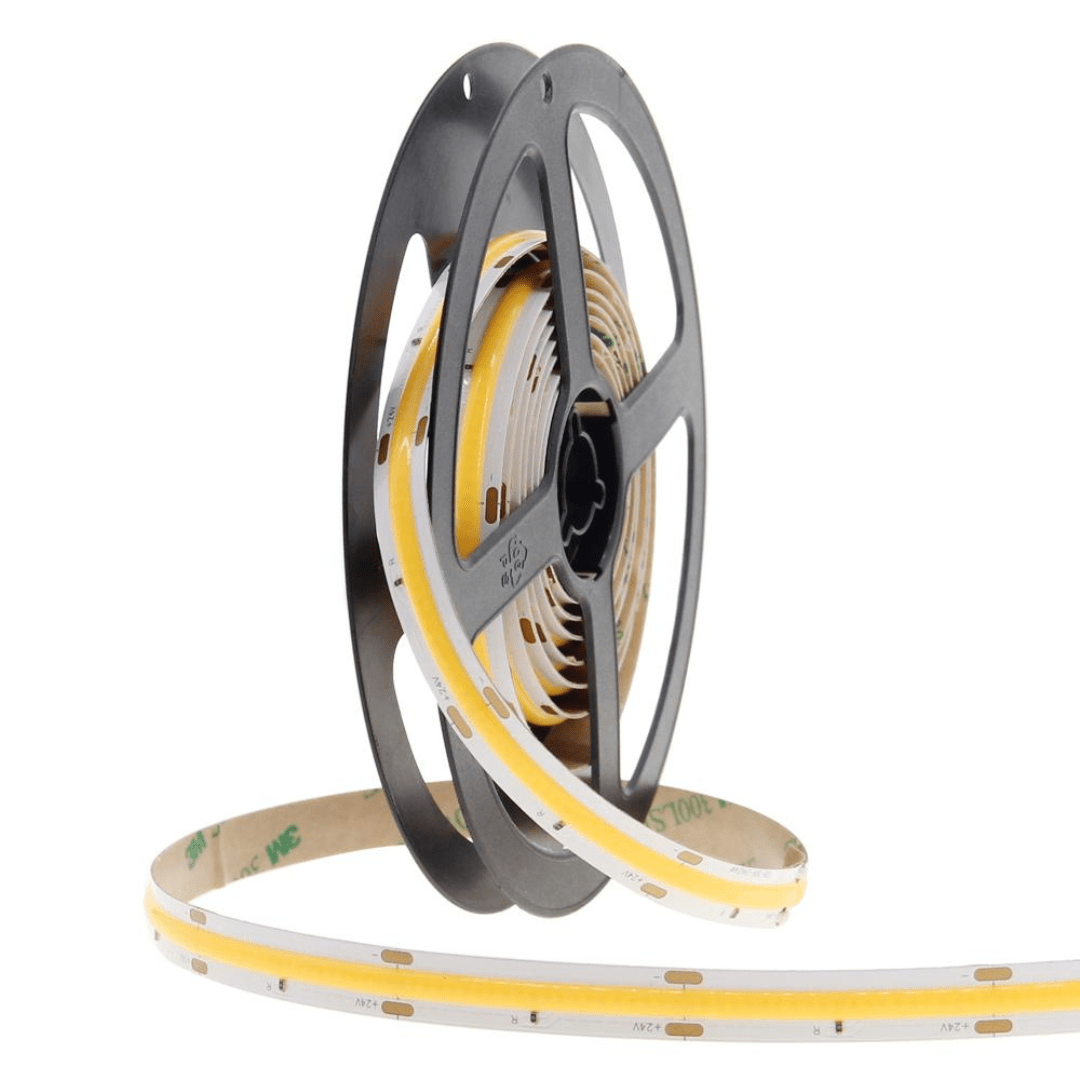

8mm | 10W/m 4000ºK | IP20 | COB Flexible LED Strip Light

8mm | 10W/m 4000ºK | IP20 | COB Flexible LED Strip Light


Lighting Creations

In stock

COB flexible strip light offers a seamless visual linear light, eliminating any visual dots often found with traditional strip light.  Ideal for installations where the LED strip will not be mounted within profile but seen. The dotless design also allows the use of a less opaque (diffused) profile cover. This allows more light to transmitted without having to minimise dots.

This LED strip light is rated at 10W/m, producing low levels of light.

CRI is >90, which provides very high true colour representation.

COB is an acronym for: Chip on Board

The PCB is made using 3oz copper, this reduces voltage drop, so allows for a continuous 10m length without visible loss of brightness.

The thermal efficiency of this LED strip means it does not require a heatsink allowing it to be mounted to almost any smooth hard surface.

This LED strip carries an IP rating of 20, this is an indoor / dry environment LED strip only.

  • Requires 24V driver (sold separately)
  • Choose from a range of drivers between 60W and 200W to match the length of flexi-strip required
  • Remote, wall mounted and CONNECT Wi-Fi controllers available as accessories
  • For runs over 5m individual lengths should be connected in parallel
  • Easy clip connector packs available as accessories
Electrical Data
Voltage 24 VDC
Wattage 1m 10 W
Current 1m 0.45 A
LED Data
Package Type COB (Chip on Board)
Chips LED 1
LEDs 1m 480
Photometric Data
Colour Temperature 4000K
Colour Rendering Index Ra >90
Luminous Flux 1m 800
Luminous Efficacy 80
Beam Angle 120°
Dimmable 1 ∼ 100% (refer data sheet)
Construction / Protection Data
Substrate Double layer FPCB
Mounting Double sided tape 3M 9080
IP Rating IP20
Operating Temperature -20 ∼ +70 C°
Storage Temperature -20 ∼ +50 C°
Cutting increments 50.0mm
Length 5m
Width 8.0mm
Height 4.0mm
Working Life 50,0000 hrs
