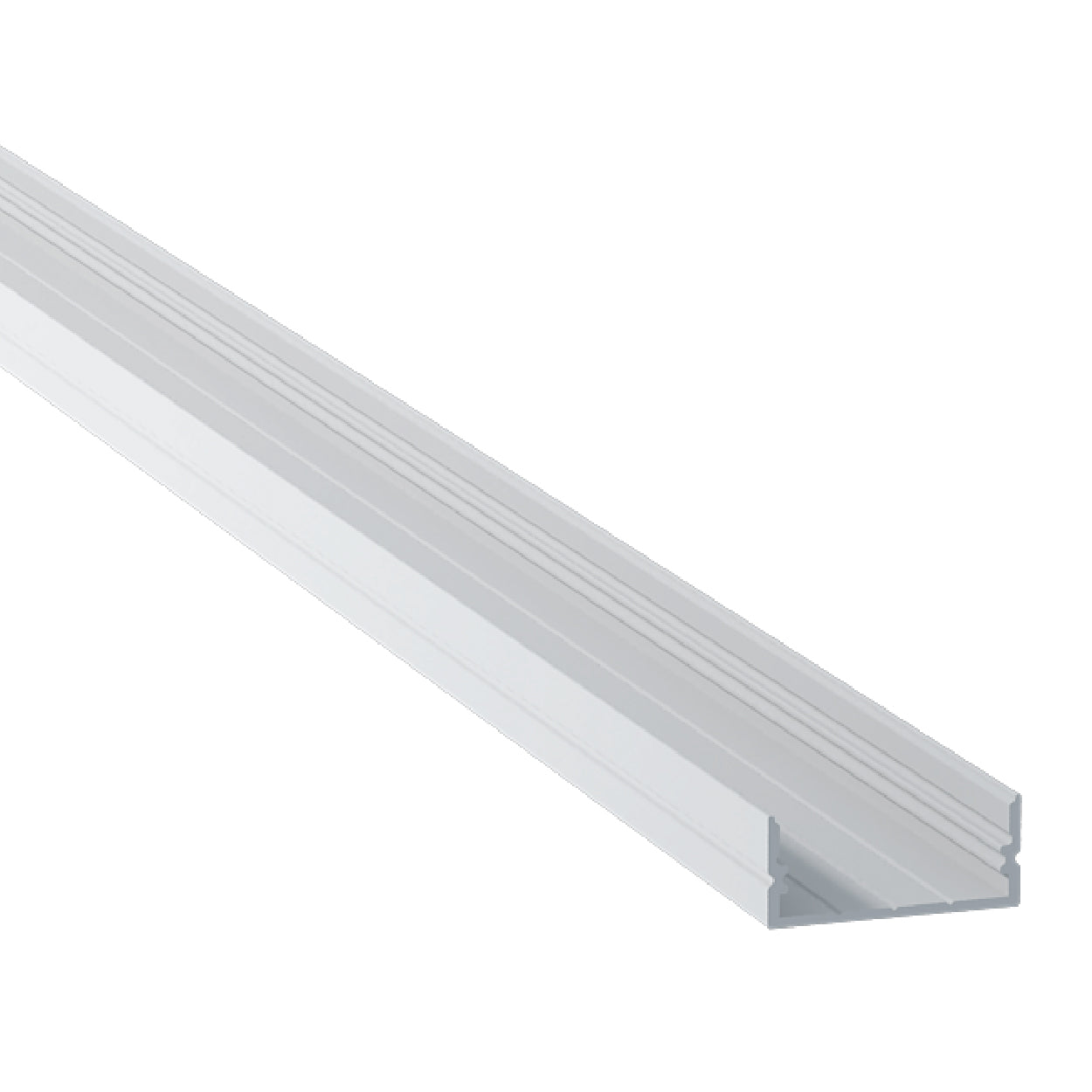

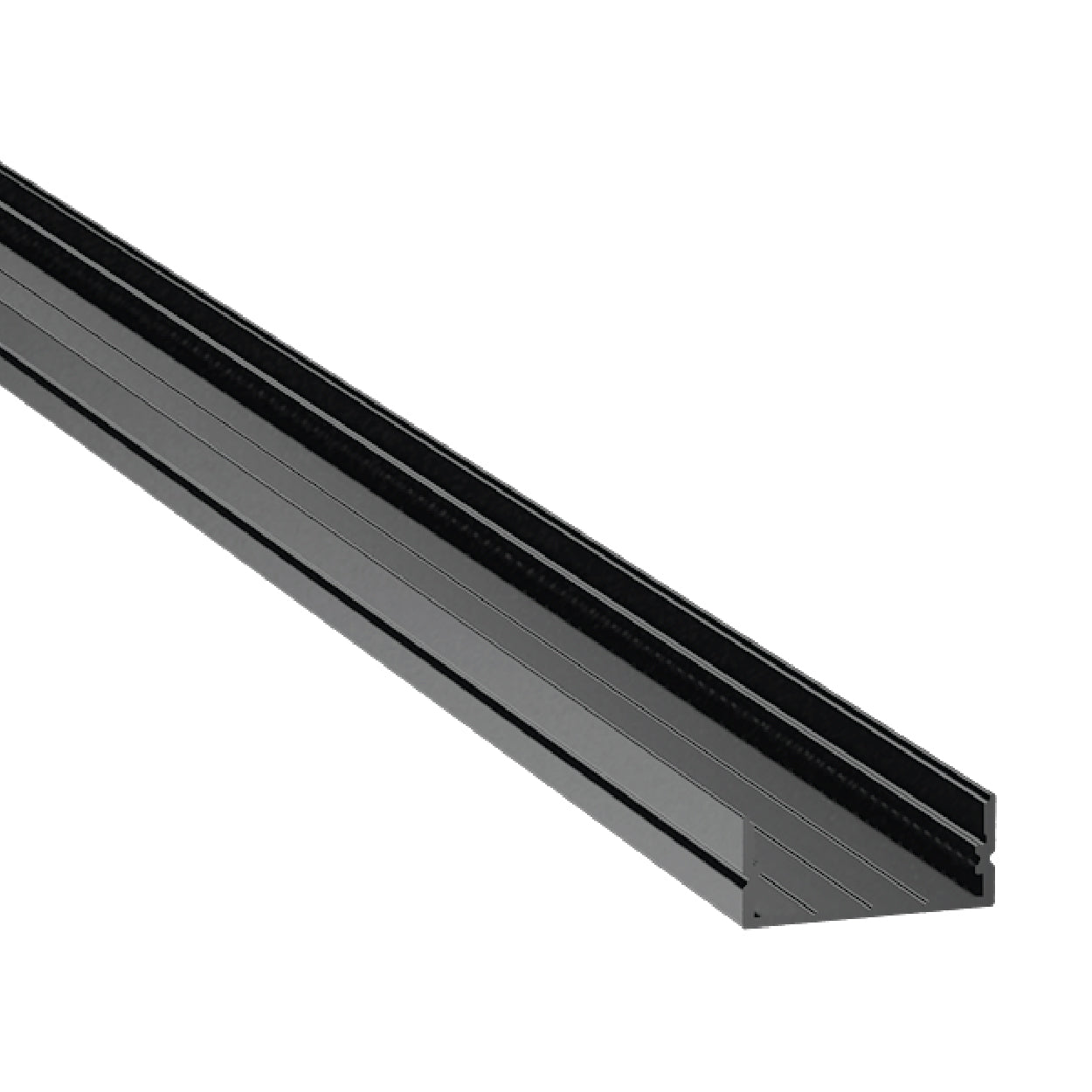

22.6x9.7mm LED Aluminium Profile – Slim Indoor Lighting Channel

22.6x9.7mm LED Aluminium Profile – Slim Indoor Lighting Channel

SKU:2310ALU-B

Lighting Creations

In stock

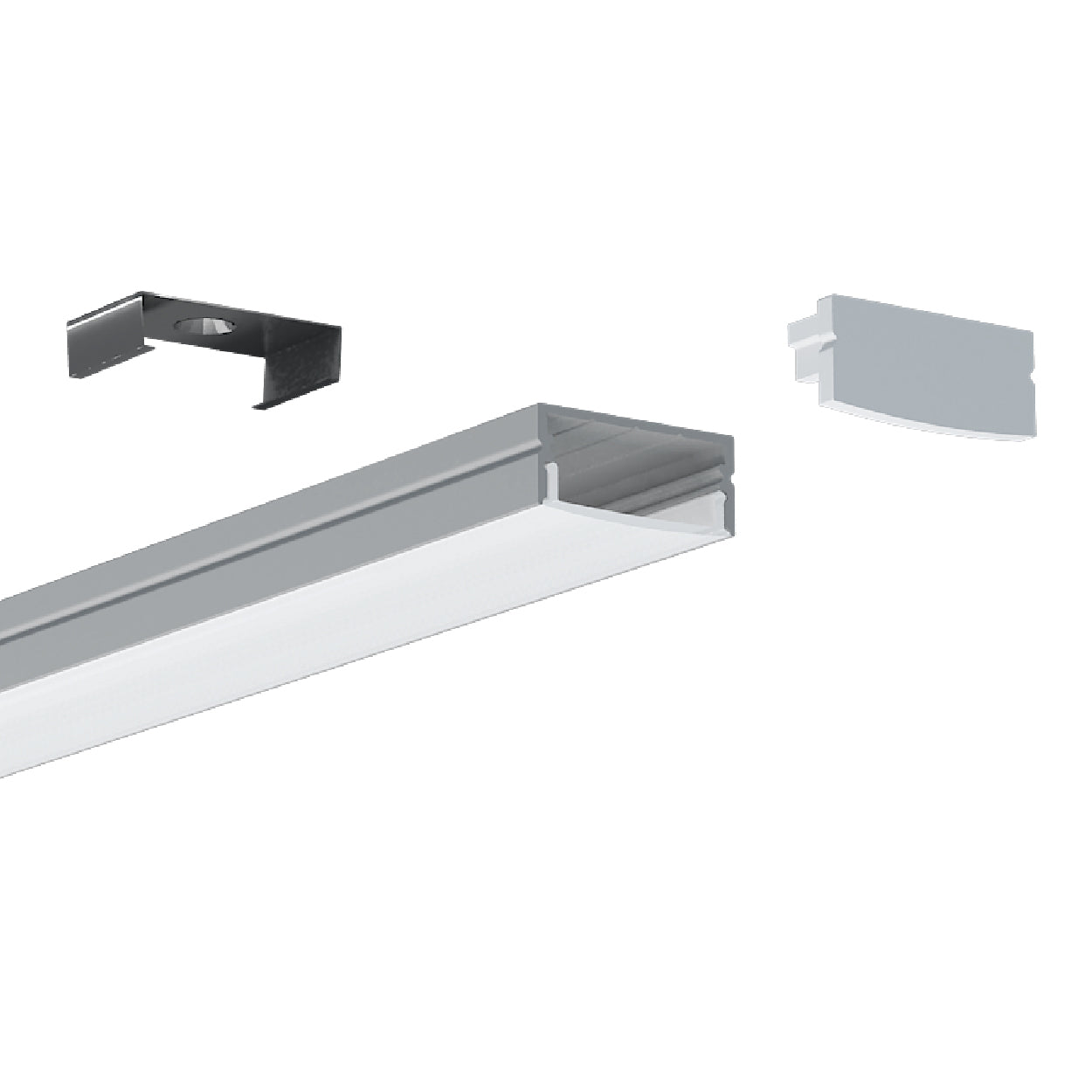

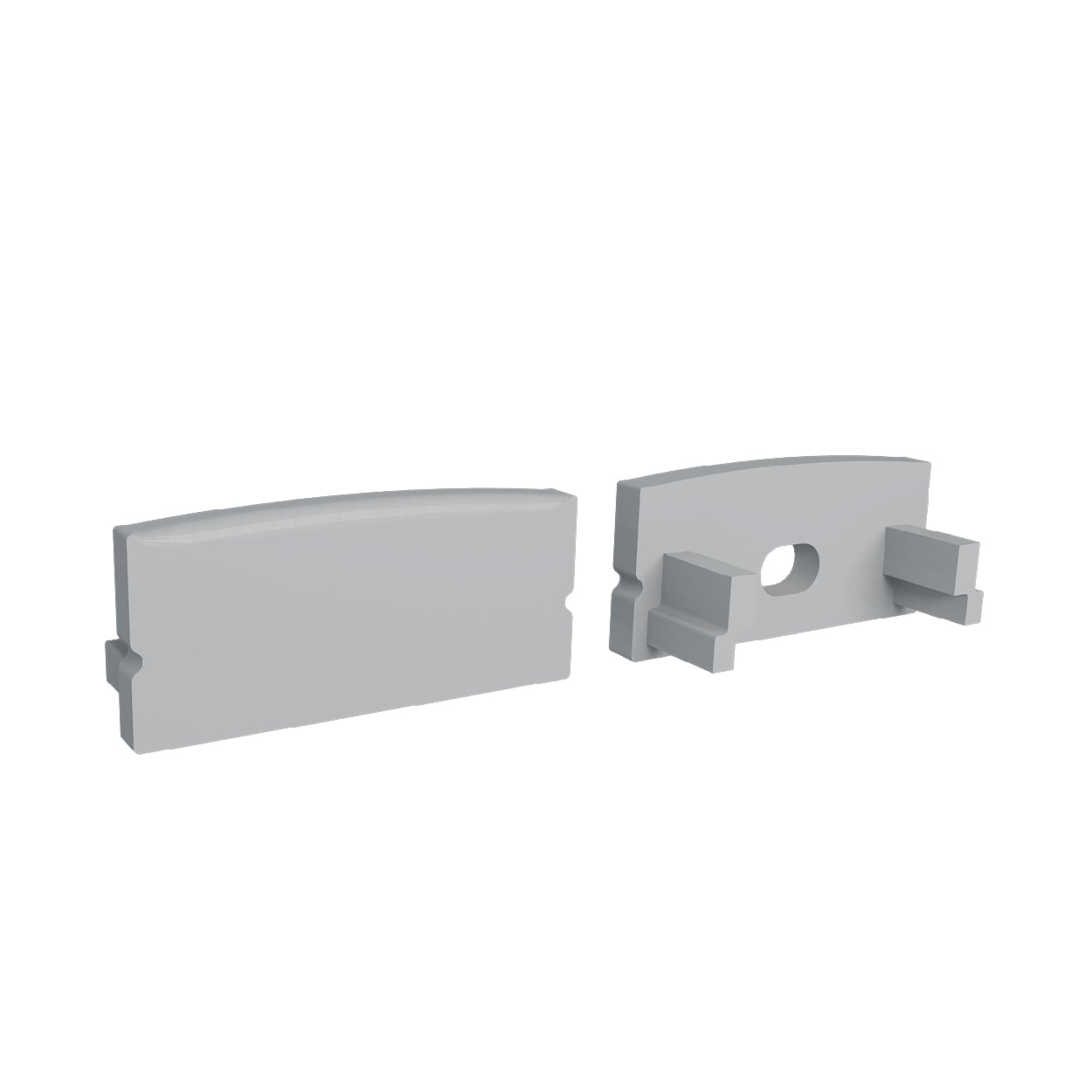

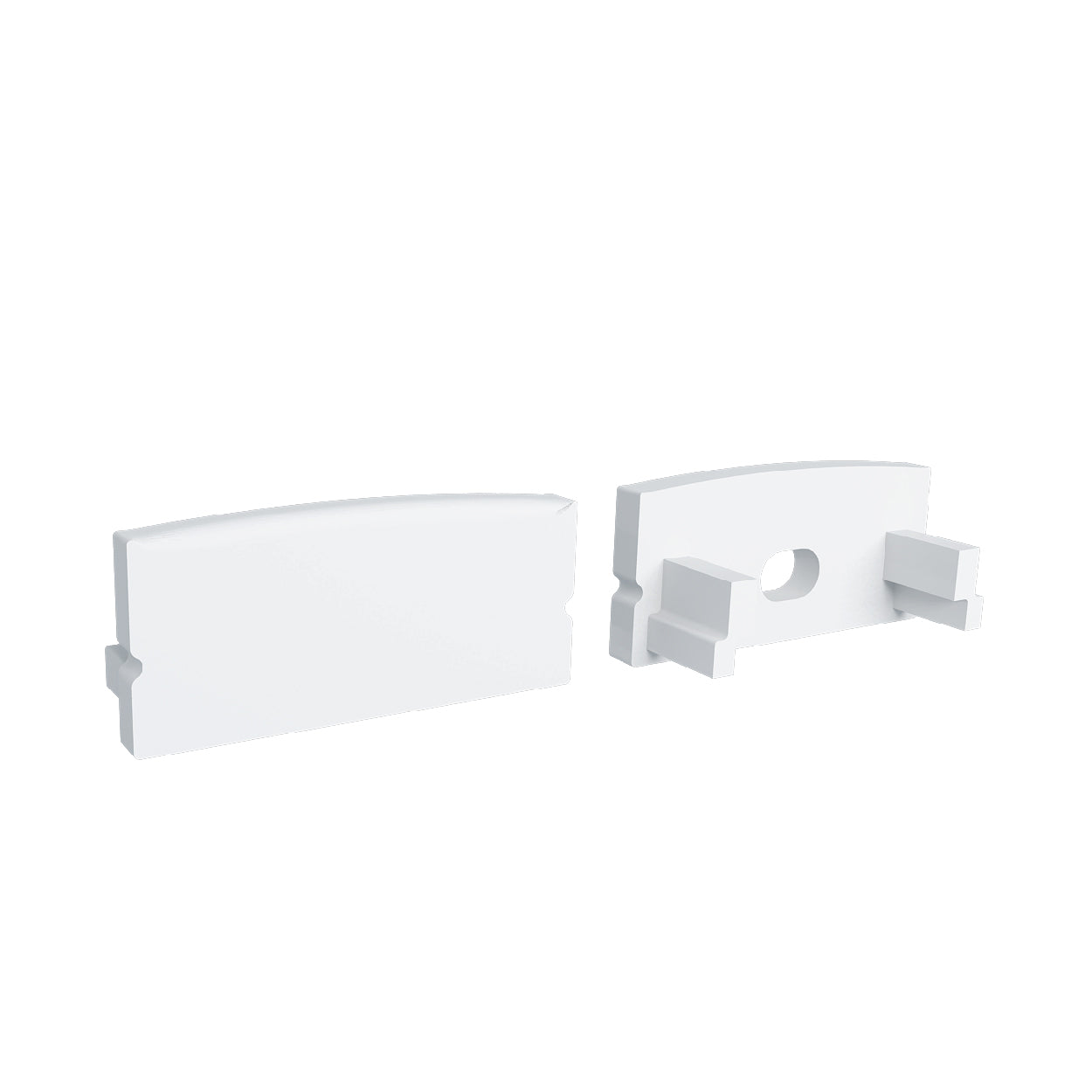

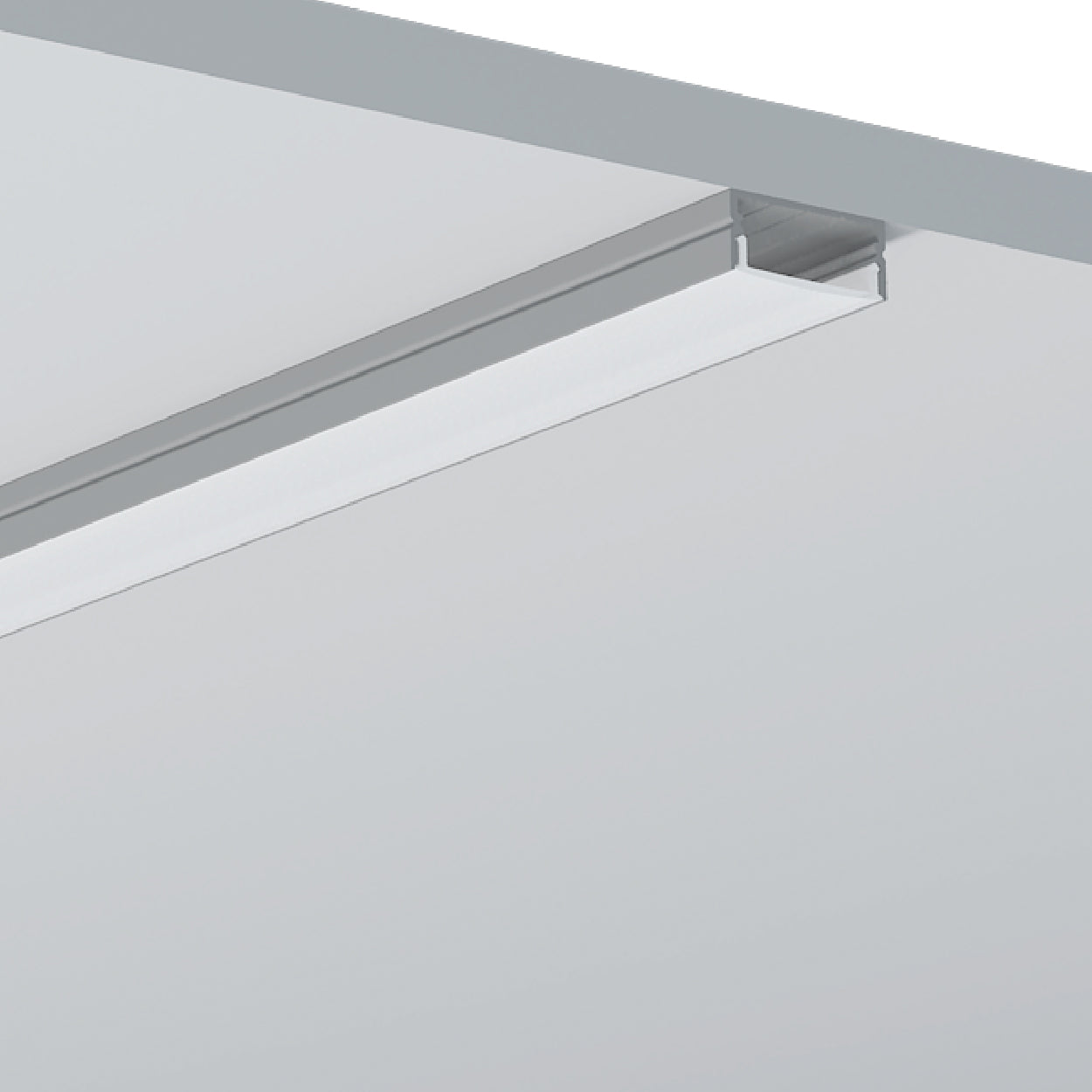

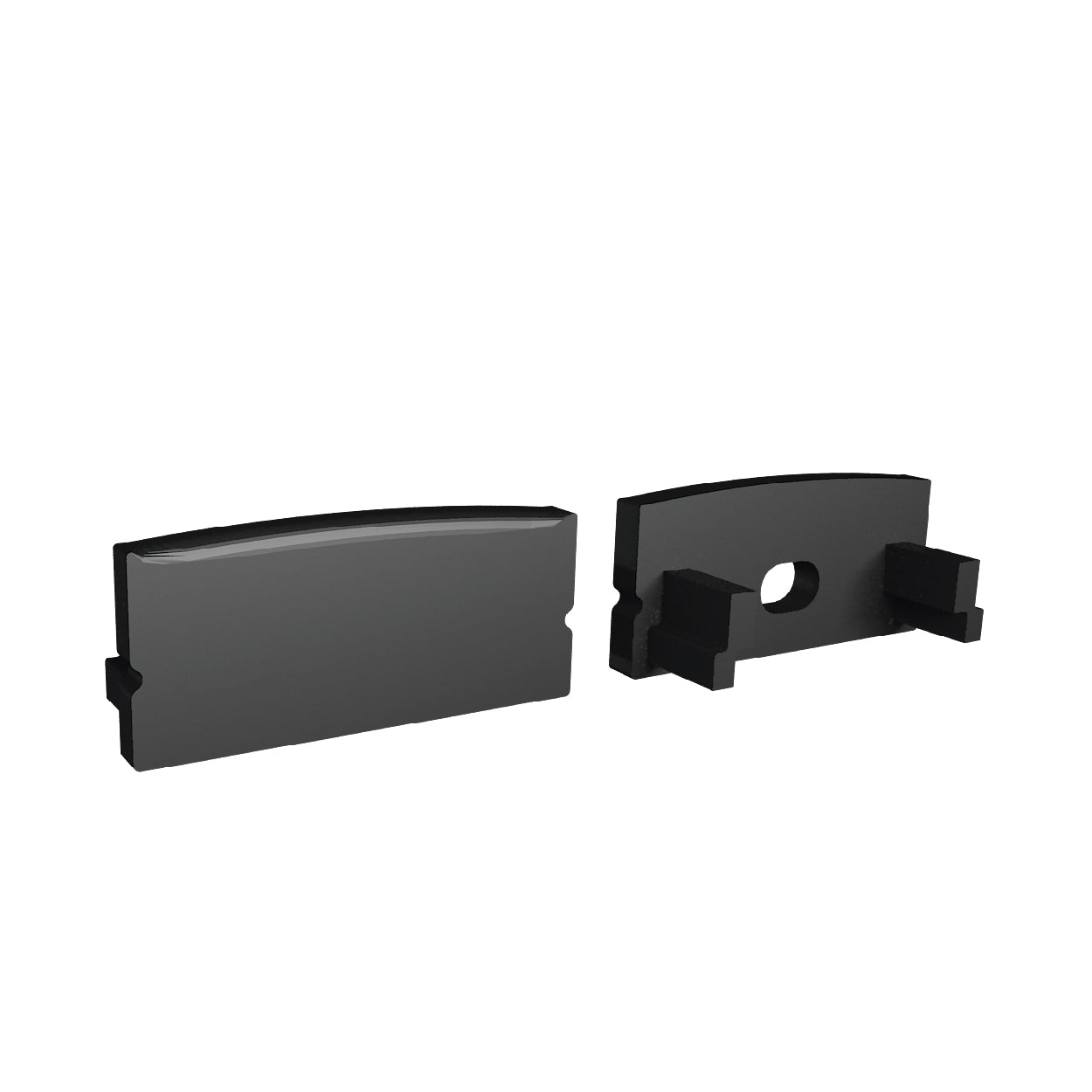

This profile is perfect for indoor lighting, featuring a simple, elegant design and easy installation. Crafted from premium 6063-T5 aviation-grade aluminium with a refined silver anodized finish, it combines durability with a sleek appearance. The press-fit PC cover ensures smooth light output, while push-in end caps provide a neat finish. Installation is straightforward with surface buckles or optional stainless-steel mounting clips, offering flexibility for different applications.



Specifications

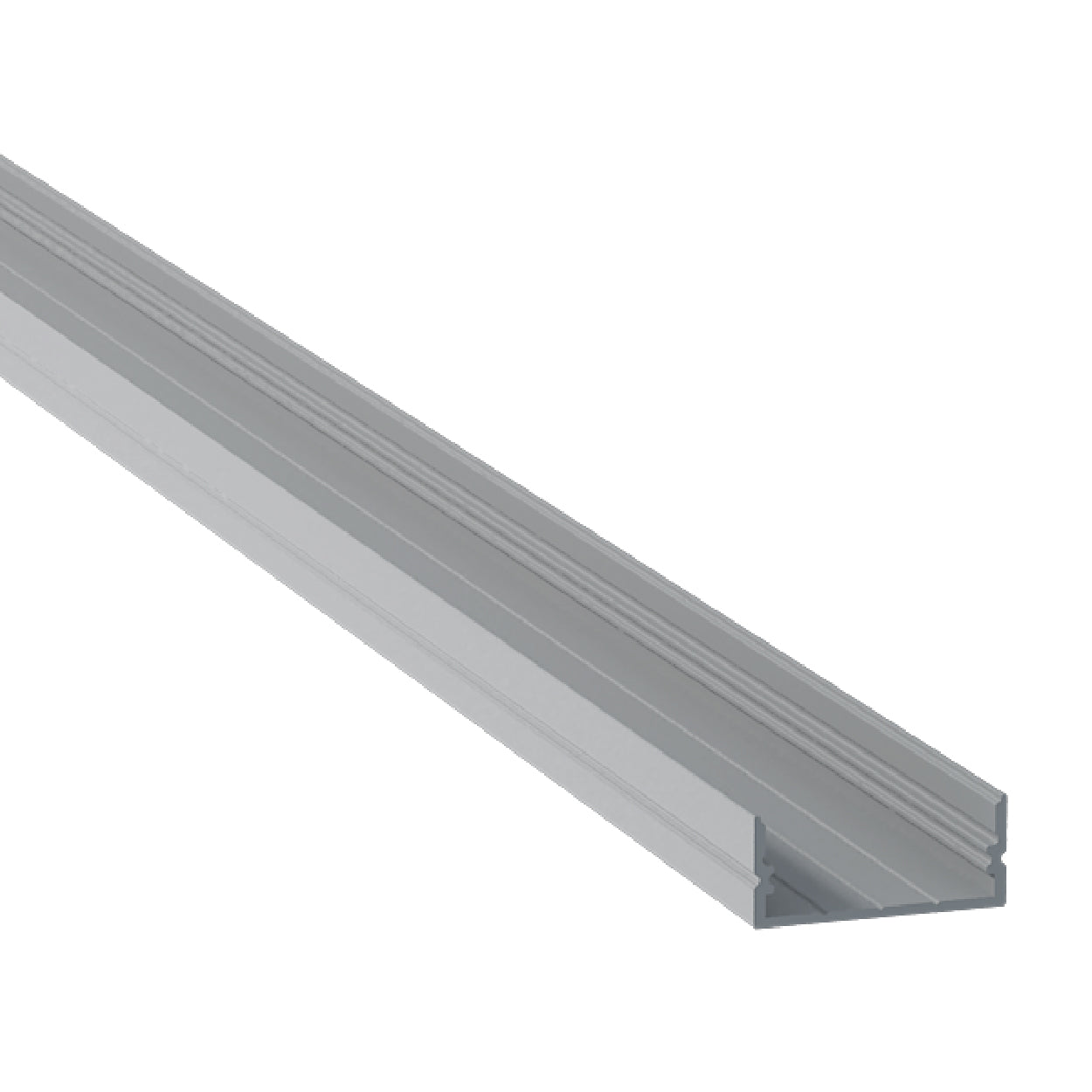

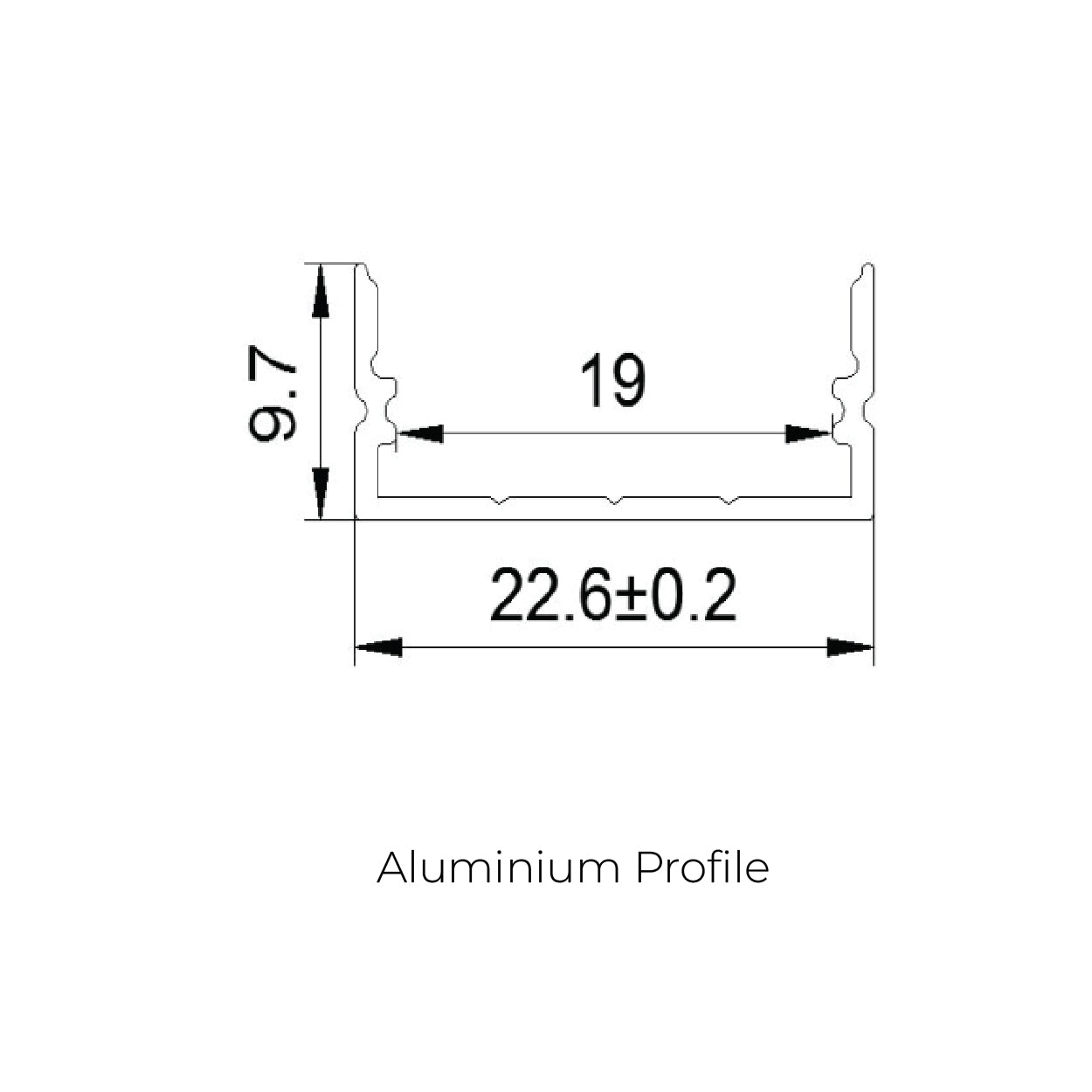

Aluminium Profile Size: 22.6*9.7mm
Material: 6063-T5
Technology procedure: heat extrusion
Weight: 105g/Met
Length: 1/2/3Mte Can be carve up according to demand

Silver: 2310ALU-S
Black: 2310ALU-B
White: 2310ALU-W

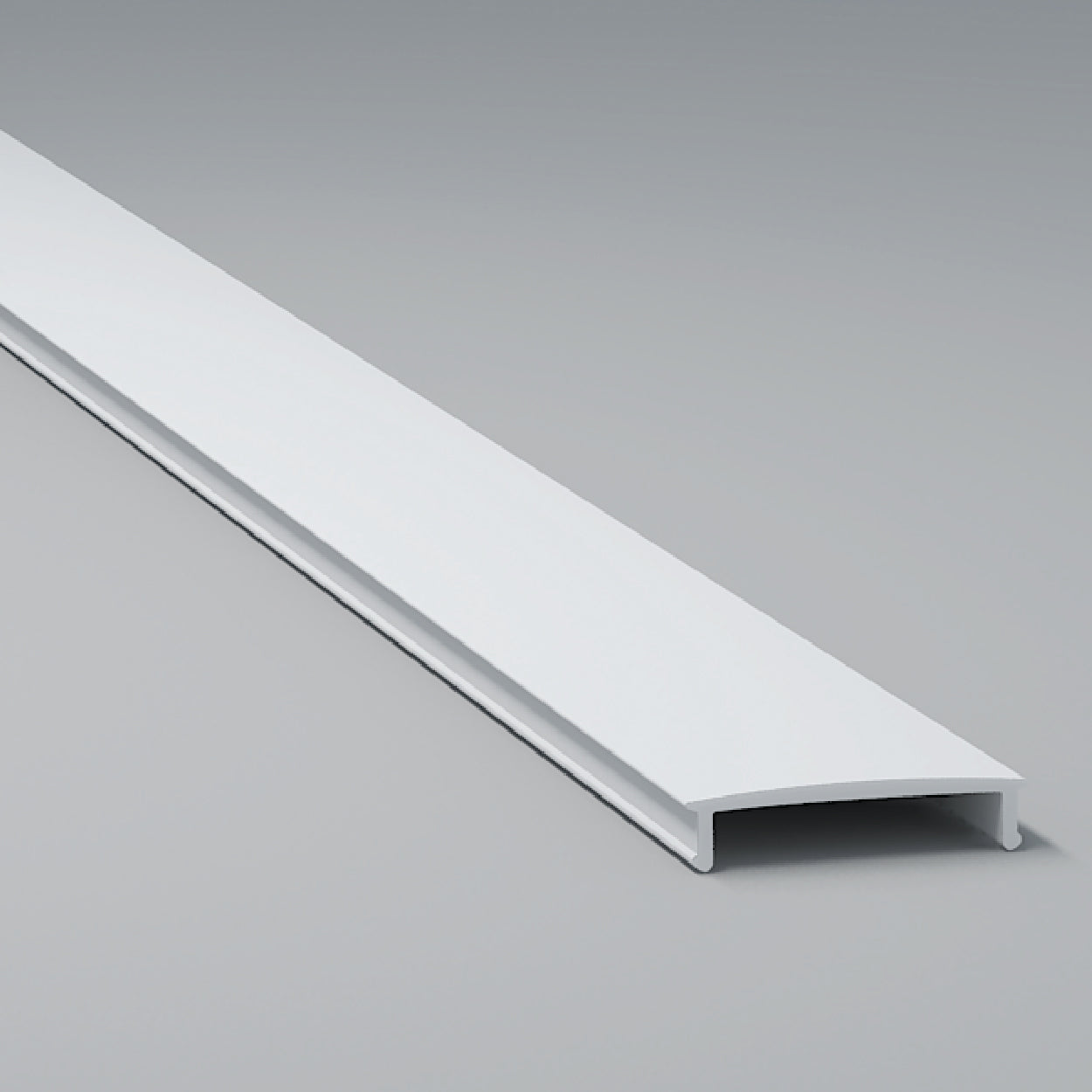

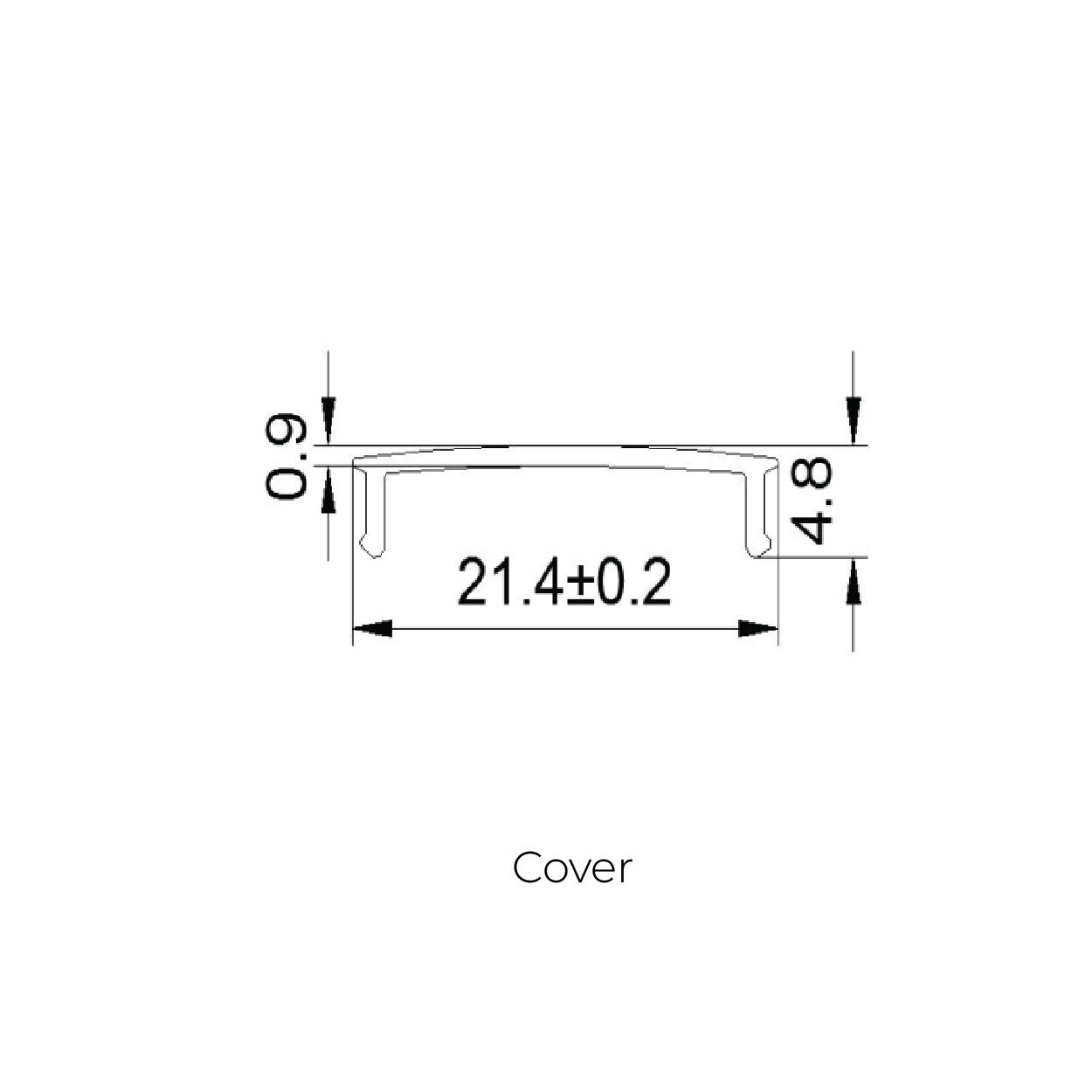

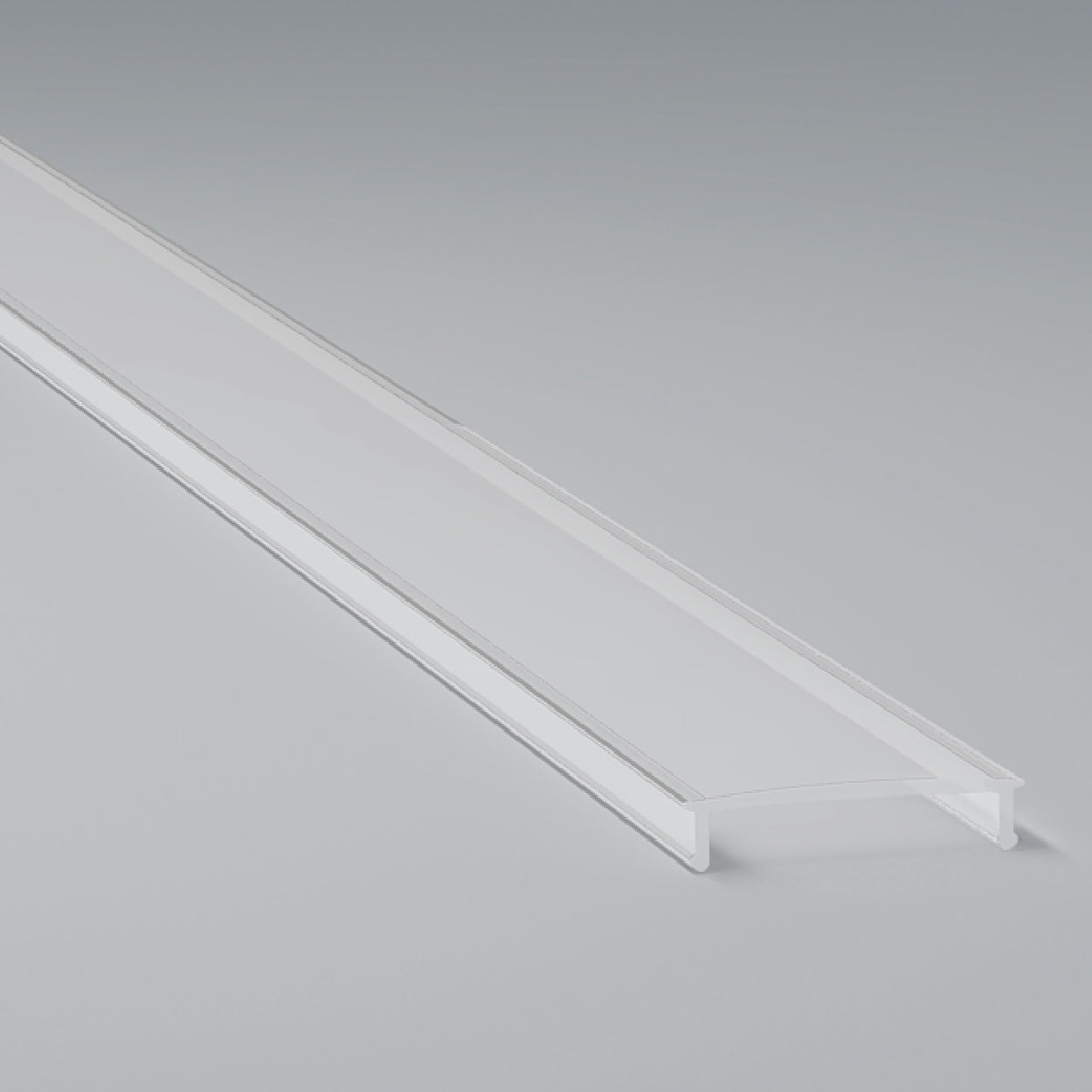

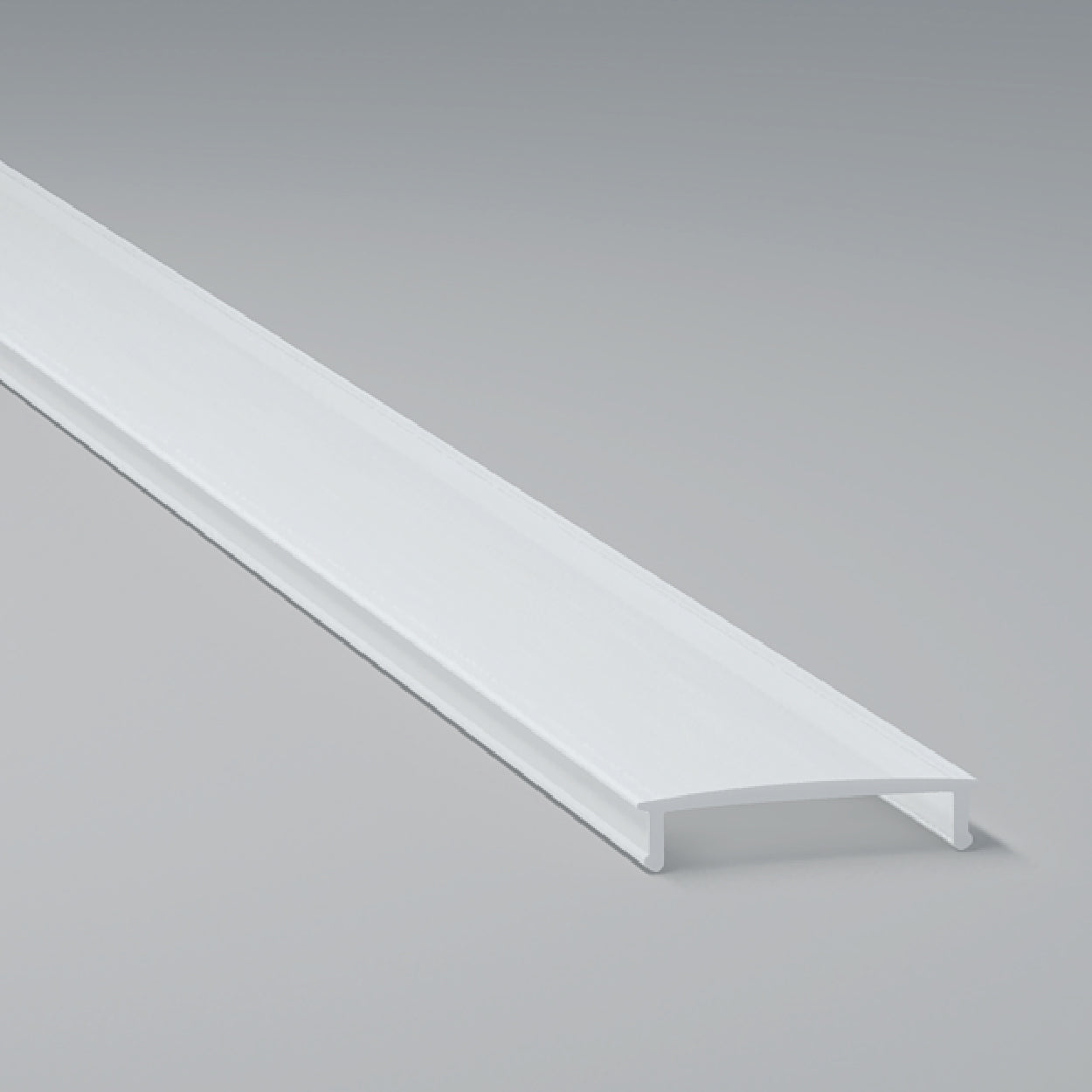

Cover Size: 11*4.6mm
Material: PC Panlite 1250Z-100
Technology procedure: heat extrusion
Weight: 20g/Met
Length: 1/2/3Mte Can be carve up according to demand
Diffuser (70-80%*): 2310PC-O
Opal (30-40%*): 2310PC-D
Clear (85-95*)%: 2310PC-T

*Transmittance

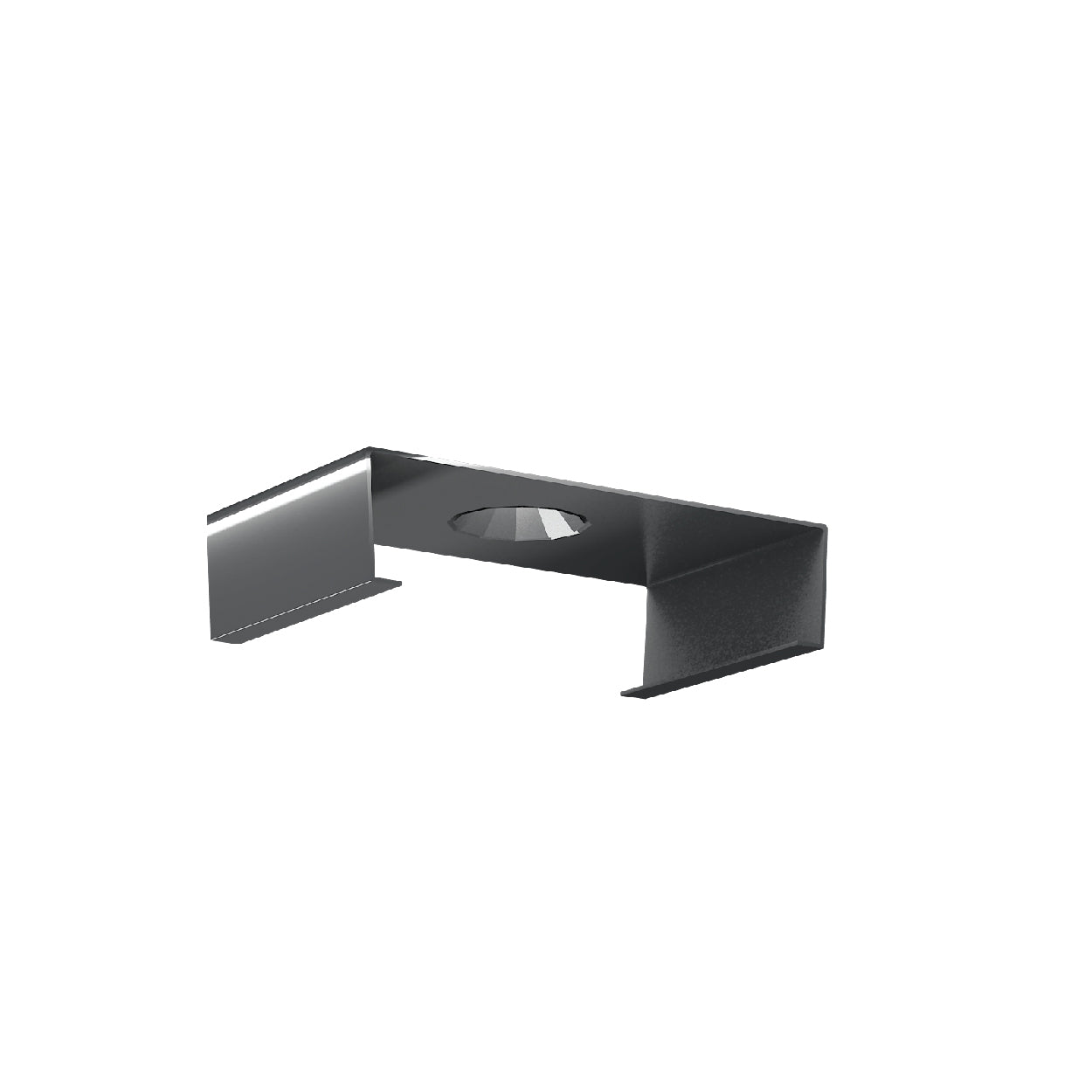

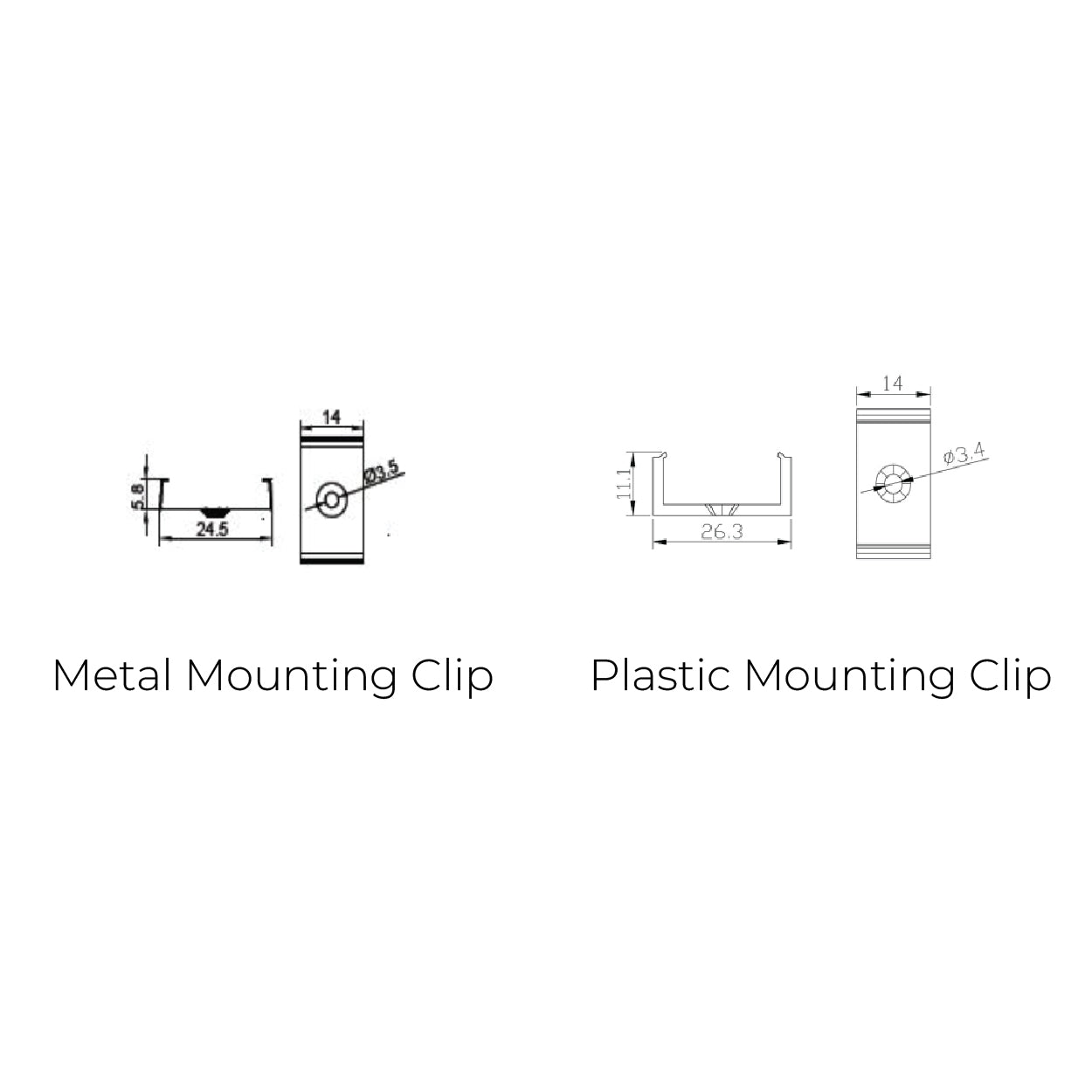

Mounting Clip Size: 24.5*5.8*14mm
Material: 304 stainless steel
Technology procedure: Cold stamping
Weight: 1.2g/Set

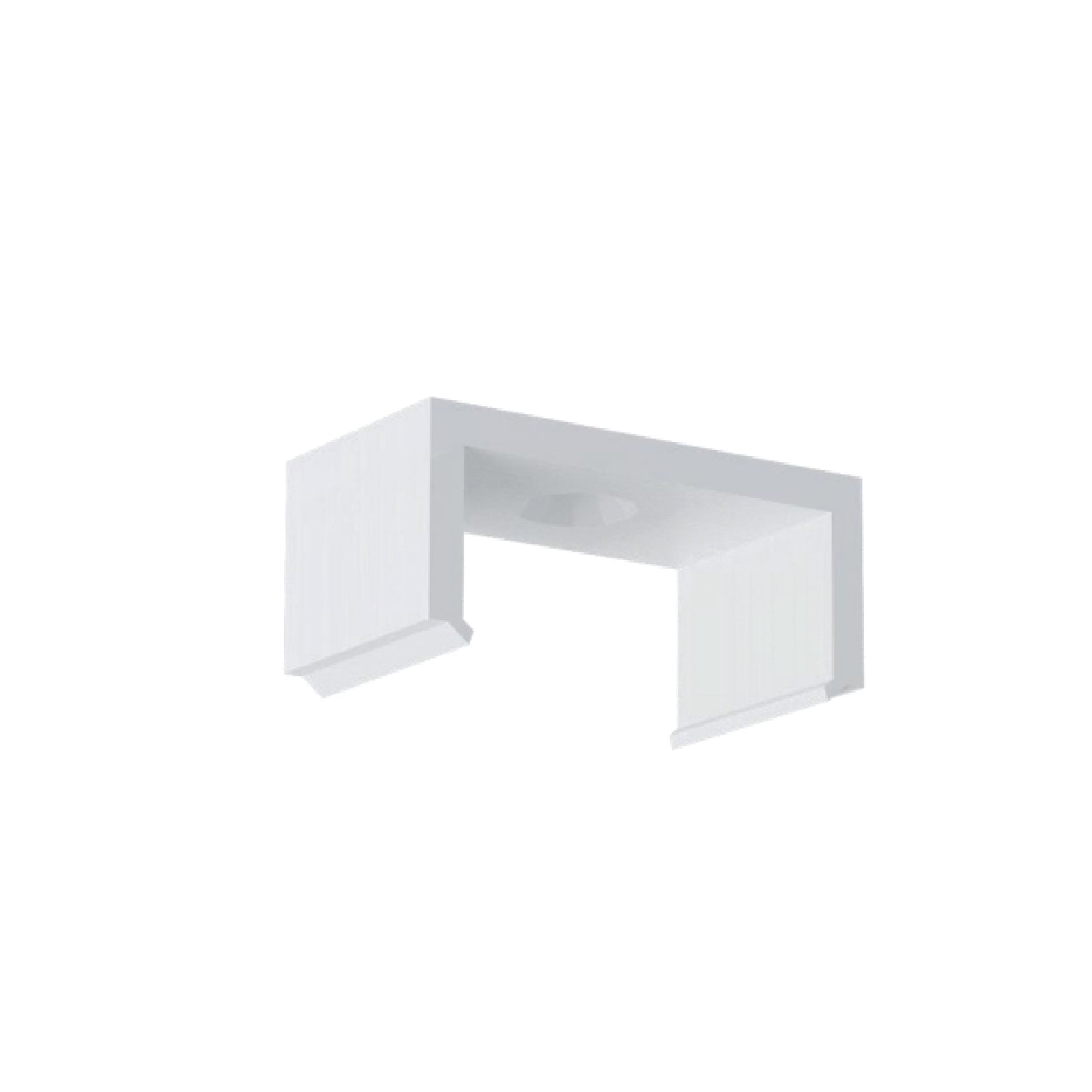

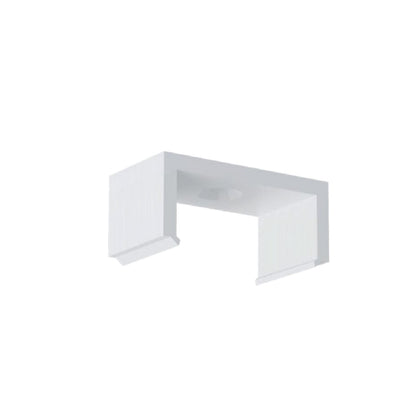

Size: 26.3*11.1*14mm
Material: PC Panlite 1250Z-100 Technology procedure: heat injection molding and
extrusion
Weight: 1.2g/Set
Natural color of stainless steel:
2310CP01





Plastic: 2310CP01
