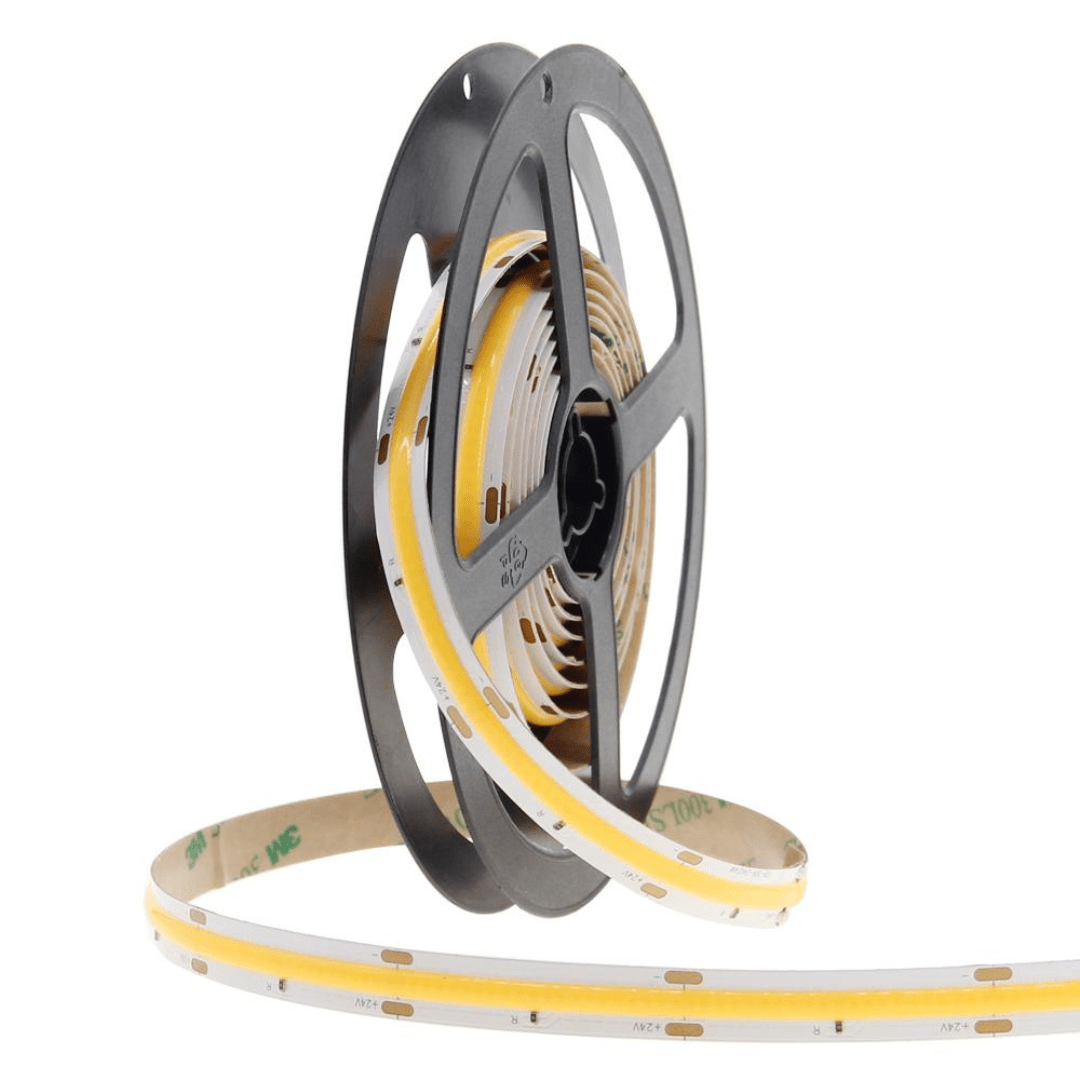

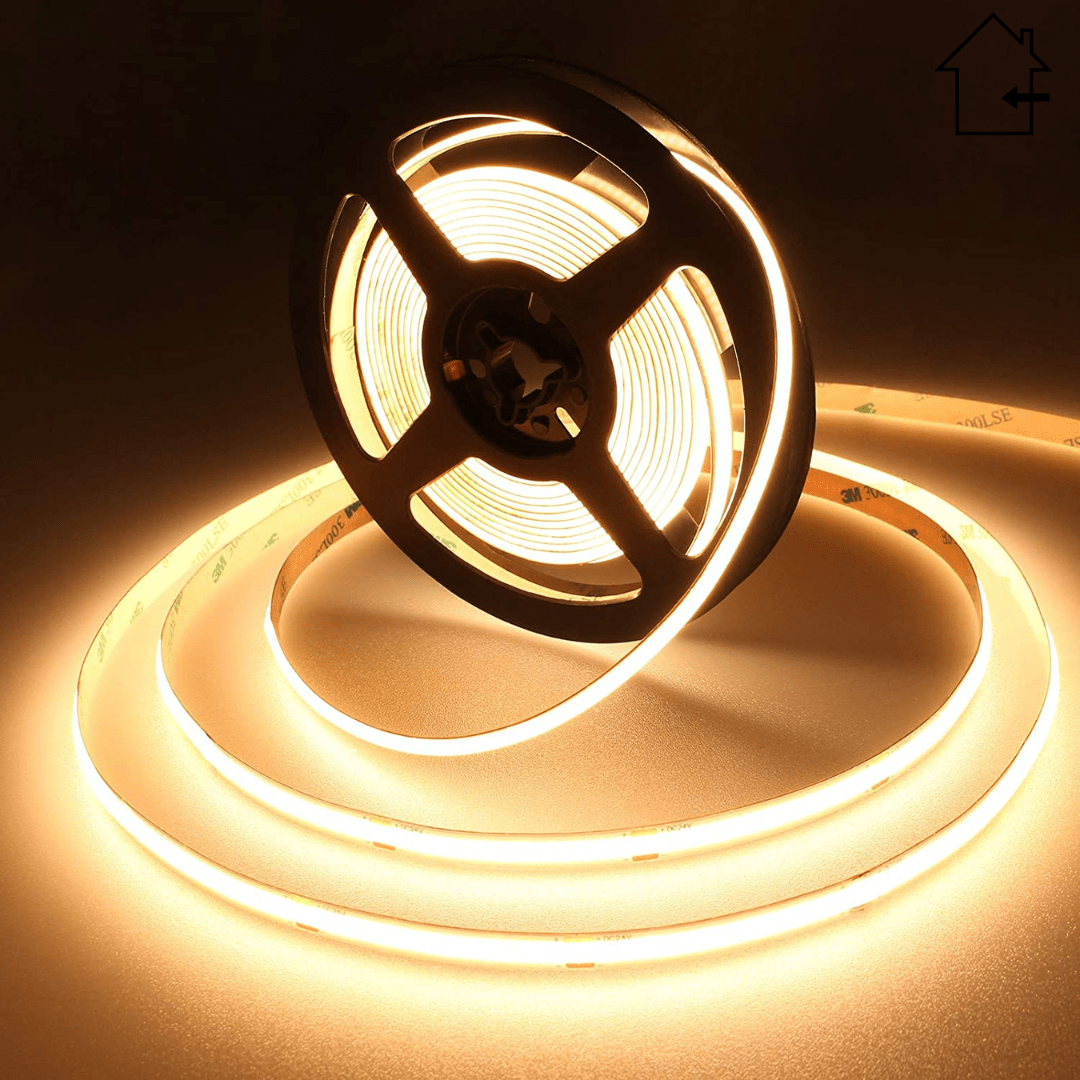

10mm | 15W/m 3000ºK | IP20 | COB Flexible LED Strip Light
10mm | 15W/m 3000ºK | IP20 | COB Flexible LED Strip Light
SKU:LLCOB-528-12-3K0-IP20
In stock
COB flexible strip light offers a seamless visual linear light, eliminating any visual dots often found with traditional strip light. Ideal for installations where the LED strip will not be mounted within profile but seen.
This LED strip light is rated at 14.4W/m, producing high levels of light.
CRI is >90, which provides very high true colour representation.
COB is an acronym for: Chip on Board
The PCB is made using 3oz copper, this reduces voltage drop, so allows for a continuous 10m length without visible loss of brightness.
The thermal efficiency of this LED strip means it does not require a heatsink allowing it to be mounted to almost any smooth hard surface.
This LED strip carries an IP rating of 20, this is an indoor / dry environment LED strip only.
Electrical Data | |
---|---|
Voltage | 12 VDC |
Wattage 1m | 15 W |
Current 1m | 1.2 A |
LED Data | |
Package Type | COB (Chip on Board) |
Chips LED | 1 |
LEDs 1m | 528 |
Photometric Data | |
Colour Temperature | 3000K |
Colour Rendering Index Ra | >90 |
Luminous Flux 1m | 1584 |
Luminous Efficacey | 110 |
Beam Angle | 120° |
Dimmable | 1 ∼ 100% (refer data sheet) |
Construction / Protection Data | |
Substrate | Double layer FPCB 3oz |
Mounting | Double sided tape 3M 9080 |
IP Rating | IP20 |
Operating Temperature | -20 ∼ +70 C° |
Storage Temperature | -20 ∼ +50 C° |
Dimensions | |
Cutting increments | 45.45mm |
Length | 5m |
Width | 10.0mm |
Height | 1.2mm |
Lifetime | |
Working Life | 70,0000 hrs |
